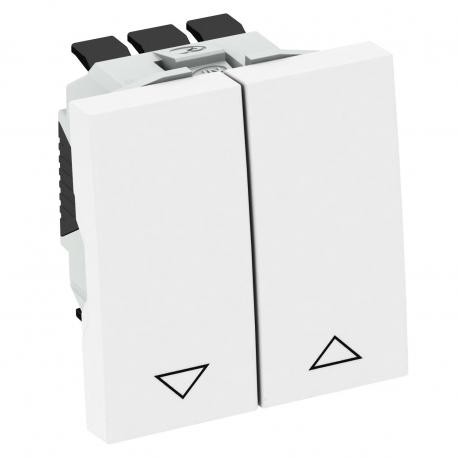

RT-BS RW1 6120980 OBO BETTERMANN PUSH-BUTTON BLIND
RT-BS RW1
6120980
OBO BETTERMANN
1 Pcs.
PUSH-BUTTON BLIND
Shutter button 10 A, 250 V pure white 9010 Polycarbonate, PC
Roller blind button, 1 module. Roller blind button with electrical locking, 1-pin, 10 A, 250 V~, with screwless terminals.For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Automation > Venetian blind switch/-push button
EGS device systems - OBO BETTERMANN
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Colour | Pure white; RAL 9010 |
|---|---|
| Combination | Miscellaneous |
| Dimension | 10 A, 250 V |
| Dimension | 45 x 45 |
| Fastening type | Lock |
| Halogen-free | yes |
| Labelling panel | no |
| Material | Polycarbonate |
| Mounting type | Device installation duct |
| Nominal current | 10 A |
|---|---|
| Nominal voltage | 250 V |
| Number of modules (for modular construction) | 1 |
| Operation type | Rocker |
| Protection rating | IP20 |
| Surface version | Matt |
| Transparent | no |
| Version for | Switch, 1 pin |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | 1-pole push button |
| Method of operation (EF000006) | Rocker |
| Mounting method (EF000003) | Trunking mounted |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Other |
| Halogen free (EF000025) | Yes |
| Surface finishing (EF006569) | Matt |
| Type of fastening (EF002442) | Engage (snap) |
| Colour (EF000007) | White |
| RAL-number (similar) (EF003882) | 9010 |
| Transparent (EF006243) | No |
| Label space/information surface (EF001035) | No |
| Suitable for degree of protection (IP) (EF006755) | IP20 |
| Nominal voltage (EF000002) | 250 V |
| Number of modules (module system) (EF009573) | 1 |
