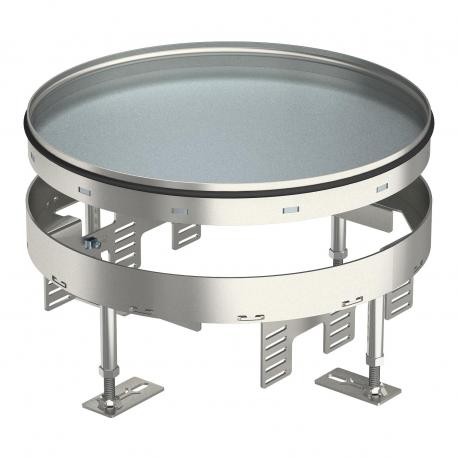

OBO BETTERMANN RKR2 9V 20 RKR2 9V 20 7409128 OBO BETTERMANN SET COVER AND FRAME ROUND RKR2 9V 20 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RKR2 9V 20 7409128 OBO BETTERMANN SET COVER AND FRAME ROUND RKR2 9V 20

RKR2 9V 20

7409128

OBO BETTERMANN

1 Pcs.

SET COVER AND FRAME ROUND RKR2 9V 20 RKR2 9V 20 round lid and frame set, blind Ø305mm Stainless steel 1.4301, A2, 1.4301, RKR2 9V 20 7409128 Height-adjustable cassette for inspection opening, RKR, stainless steel

Automation > Levelling cassette for duct mounting, raised and underfloor installation
UFS Underfloor piping systems - OBO BETTERMANN

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An RKR2 9V 20 set cover and frame round Obo Bettermann RKR2 9V 20 is designed to safely house floor box installations while providing a clean, flush interface with the finished floor surface in commercial environments. These cover and frame assemblies protect internal wiring devices from physical damage and debris ingress in areas subject to routine floor maintenance. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type: RKR2 9V 20
  • Nominal size: R9
  • Dimen- sion h mm: 105
  • Floor covering thickness mm: 20
  • Floor height mm: 105-155
  • Pack. pcs: 1
  • Weight kg/100 pcs.: 453,000
  • Item No.: 7409128
  • Min. built-in depth (EF005027): 105 mm
  • Levelling height (EF007999): 105 mm
  • Floor maintenance (EF004546): Wet
  • Model (EF000010): Round
  • Material (EF002169): Stainless steel
  • Number of conduit outlets (EF004424): 0
  • Chassis part for device cups (EF004750): No
  • Built-in diameter (EF000943): 305 mm

More info

▲

Height-adjustable "blank" cassette for the creation of an inspection opening of nominal size R9 in dry or wet-cleaned floors. Only suitable for smooth floor coverings.


TypeRKR2 9V 20
Nominal sizeR9
Dimen- sion h mm105
Floor covering thickness mm20
Floor height mm105-155
Pack. pcs1
Weight kg/100 pcs.453,000
Item No.7409128
