OBO BETTERMANN
>
VBS Connection and fastening systems - OBO BETTERMANN
>
Rest materials assembly
>
3484602
View larger
Images are for illustrative purposes only. Please refer to data sheet for details

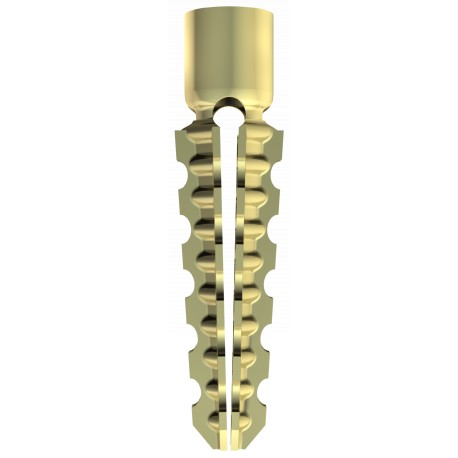

MD 5 GTP 3484602 OBO BETTERMANN Metal expanding anchor , 5x30mm, Electrogalvanised, transparently passivated..
MD 5 GTP
3484602
OBO BETTERMANN
200 Pcs.
Metal expanding anchor , 5x30mm, Electrogalvanised, transparently passivated, Steel, St
Metal spreading anchor. Areas of application: gas concrete, lightweight concrete, Poroton, pumice, plaster, hollow brick and full brick. Can be knocked into porous concrete (gas concrete) of low resistance without drilling. Superbly suited for areas subjected to high temperatures.
Automation > All-purpose plug
Rest materials assembly
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Diameter | 5 mm |
|---|---|
| Dimension | 5x30mm |
| Dimension D | 5 mm |
| Dimension L | 30 mm |
| Drill hole depth | 35 mm |
| Drill hole diameter, max. | 7 mm |
| Drill hole diameter, min. | 5 mm |
| Length | 30 mm |
| Material | Steel |
|---|---|
| Suitable for fastening with cable ties | no |
| Suitable for hexagonal wood screw | no |
| Suitable for material | Porous concrete, Gas concrete, Full brick, Hollow brick |
| Surface | Electrogalvanized, transparently passivated |
| Version for | Spreading anchor |
| With bolts | no |
| Wood screws | 4-5 |
