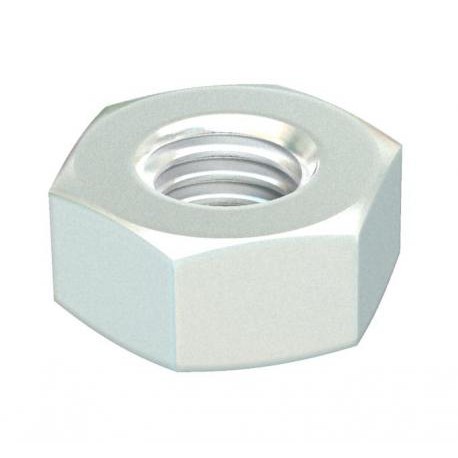

OBO BETTERMANN HN M8 A2 DIN 934 M8 VA 3397084 OBO BETTERMANN Hexagonal nut , M8, Stainless steel, grade 304, VA, 1.4301 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DIN 934 M8 VA 3397084 OBO BETTERMANN Hexagonal nut , M8, Stainless steel, grade 304, VA, 1.4301

HN M8 A2

3397084

OBO BETTERMANN

100 Pcs.

Hexagonal nut , M8, Stainless steel, grade 304, VA, 1.4301 Hexagonal nut DIN 934 V2A. Hexagonal nut to DIN 934 with metric thread.

Automation > Hexagon nut
Rest materials assembly

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This is an Obo Bettermann hexagonal nut HN M8 A2 designed to secure threaded bolts and rods within industrial equipment and support structures. Standard threaded nuts provide dependable clamping force for mechanical assemblies, junction boxes, and cable management frameworks. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,0225 kg CO2e / 1 Piece
  • Dimension: M8
  • Dimension d: 8 mm
  • Dimension h: 6,8 mm
  • Halogen-free: yes
  • Left thread: no
  • Material: Stainless steel
  • Nut version: Nut
  • Screw system nut: Hexagon head
  • Self-locking: no
  • Surface: Bright, treated
  • Thread: M8
  • Thread metric: 8
  • Thread type: Metric
  • Thread, imperial: 5/16"
  • WAF: 13

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,0225 kg CO2e / 1 Piece
DimensionM8
Dimension d8 mm
Dimension h6,8 mm
Halogen-freeyes
Left threadno
MaterialStainless steel
Nut versionNut
Screw system nutHexagon head
Self-lockingno
SurfaceBright, treated
ThreadM8
Thread metric8
Thread typeMetric
Thread, imperial5/16"
WAF13
With flangeno
