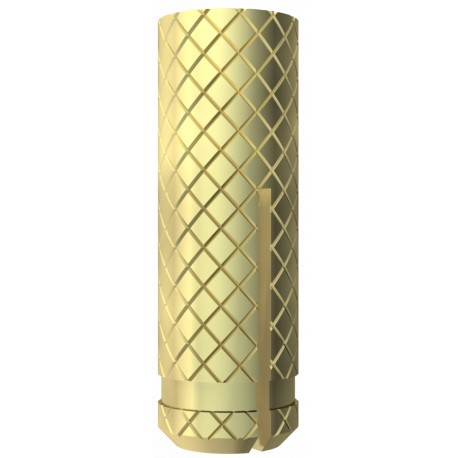

865 M10x34 3483096 OBO BETTERMANN Brass expanding anchor , M10, Brass, CuZn
865 M10x34
3483096
OBO BETTERMANN
100 Pcs.
Automation > All-purpose plug
Rest materials assembly
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Brass expanding anchor 865 M10x34 from Obo Bettermann delivers robust holding strength for demanding mechanical attachments in hard substrates. Contractors rely on these high-capacity brass plugs when mounting heavy machinery, structural supports, and heavy electrical gear.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Diameter: 12 mm
- Dimension: M10
- Dimension D: 12 mm
- Dimension L: 34 mm
- Drill hole depth: 53 mm
- Drill hole diameter, min.: 12 mm
- Length: 34 mm
- Material: Brass
- Pull-out value: 9000 N
- Suitable for fastening with cable ties: no
- Suitable for hexagonal wood screw: no
- Suitable for material: Concrete, Full brick, Wood
- Thread: M10
- Version for: Spreading anchor
- With bolts: no
More info
▲| Diameter | 12 mm |
|---|---|
| Dimension | M10 |
| Dimension D | 12 mm |
| Dimension L | 34 mm |
| Drill hole depth | 53 mm |
| Drill hole diameter, min. | 12 mm |
| Length | 34 mm |
| Material | Brass |
| Pull-out value | 9000 N |
|---|---|
| Suitable for fastening with cable ties | no |
| Suitable for hexagonal wood screw | no |
| Suitable for material | Concrete, Full brick, Wood |
| Thread | M10 |
| Version for | Spreading anchor |
| With bolts | no |
