SSLB 500 DD 7070326 OBO BETTERMANN Impact point strip Wide, with shared screws, B500mm, Zinc-aluminium coate..

SSLB 500 DD

7070326

OBO BETTERMANN

20 Pcs.

Impact point strip Wide, with shared screws, B500mm, Zinc-aluminium coated, double-dip, Steel, St SSLB 500 DD union plate, wide, with 6 fixings B500mm Steel, St, Galvanized in zinc/aluminum strip, Double Dip, DIN EN 10346 Joint plate DD. Wide joint plate for use in all cable trays and wide span cable trays.

Cables > Connector for cable support system
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

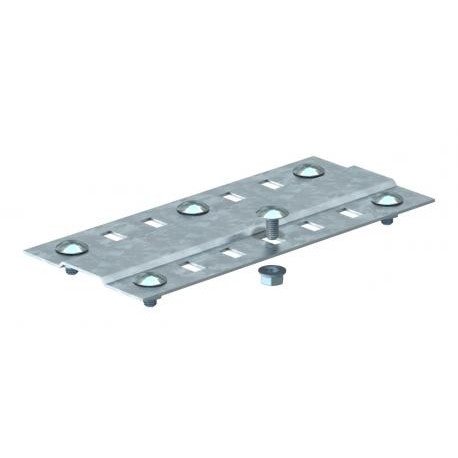

Obo Bettermann SSLB 500 DD is an impact point strip used within commercial tray setups to bridge and stabilize joint sections. This hardware supports structured cable management by reinforcing mechanical junctions along runs. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Model (EF000010): Joint clip bar
  • Type of connection (EF000064): Screw connector
  • Suitable for cable tray (EF005166): Yes
  • Suitable for cable support system height (EF015698): 35 mm
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Continuously galvanised zinc-aluminium

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate1,2507 kg CO2e / 1 Piece
Colourzinc
Connection typeScrew connector
DimensionB500mm
Dimension B500 mm
Height4 mm
Maintain electrical functionsno
MaterialSteel
Plate thickness1,5 mm
Quantity of bolts6 St.
Rustproof steel, pickledno
Suitable for cable trayyes
Suitable for cable tray system height35 mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
Version forJoint plate
Wide-span versionyes
Width19 in
Width485 mm
