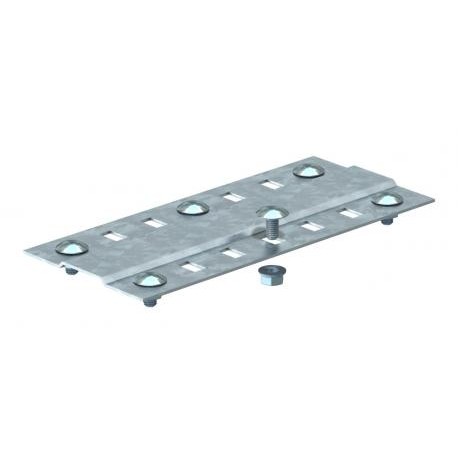

OBO BETTERMANN SSLB 400 DD SSLB 400 DD 7070322 OBO BETTERMANN Impact point strip Wide, with shared screws, B400mm, Zinc-aluminium coate.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SSLB 400 DD 7070322 OBO BETTERMANN Impact point strip Wide, with shared screws, B400mm, Zinc-aluminium coate..

SSLB 400 DD

7070322

OBO BETTERMANN

20 Pcs.

Impact point strip Wide, with shared screws, B400mm, Zinc-aluminium coated, double-dip, Steel, St Joint plate DD. Wide joint plate for use in all cable trays and wide span cable trays.

Cables > Connector for cable support system
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An impact point strip wide with shared screws provides robust joint support for wide-span cable trays, reinforcing the connection plane against mechanical loads and environmental stress in large-scale projects.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 0,9844 kg CO2e / 1 Piece
  • Colour: zinc
  • Connection type: Screw connector
  • Dimension: B400mm
  • Dimension B: 400 mm
  • Height: 4 mm
  • Maintain electrical functions: no
  • Material: Steel
  • Plate thickness: 1,5 mm
  • Quantity of bolts: 4 St.
  • Rustproof steel, pickled: no
  • Suitable for cable tray: yes
  • Suitable for cable tray system height: 35 mm
  • Surface: Strip galvanised zinc/aluminium, Double Dip
  • Version for: Joint plate
  • Wide-span version: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate0,9844 kg CO2e / 1 Piece
Colourzinc
Connection typeScrew connector
DimensionB400mm
Dimension B400 mm
Height4 mm
Maintain electrical functionsno
MaterialSteel
Plate thickness1,5 mm
Quantity of bolts4 St.
Rustproof steel, pickledno
Suitable for cable trayyes
Suitable for cable tray system height35 mm
SurfaceStrip galvanised zinc/aluminium, Double Dip
Version forJoint plate
Wide-span versionyes
Width16 in
Width385 mm
