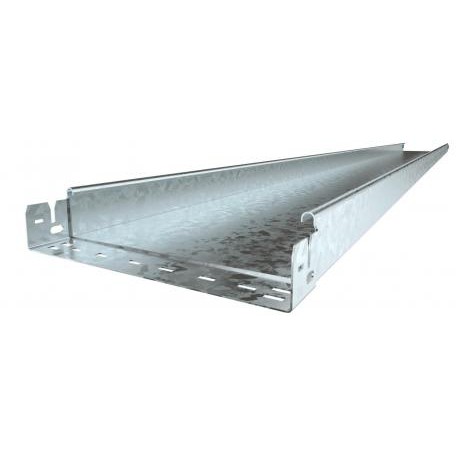

OBO BETTERMANN SKSMU 650 FT SKSMU 650 FT 6059715 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 60x500x3050, Hot-dip galv.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SKSMU 650 FT 6059715 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 60x500x3050, Hot-dip galv..

SKSMU 650 FT

6059715

OBO BETTERMANN

3 m.

Cable tray SKSMU unperf. with quick connector, 60x500x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cable tray SKS-Magic® 60, unperforated FT. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Industrial cable tray systems are deployed extensively to manage and secure heavy cable runs along walls, ceilings, and open support structures. This Obo Bettermann SKSMU 650 FT features a solid base construction with integrated connection technology to accelerate mechanical assembly.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 19,2758 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 60x500x3050
  • Dimension B: 500 mm
  • Height: 60 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: no
  • NATO hole pattern: no
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Support spacing 1.5 m: 2,6 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate19,2758 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension60x500x3050
Dimension B500 mm
Height60 mm
Length3050 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseno
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationno
Support spacing 1.5 m2,6 kN/m
Support spacing 2.0 m1,9 kN/m
Support spacing 2.5 m1,1 kN/m
Support spacing 3.0 m0,55 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section298 cm²
Usable cross-section29800 mm²
Usable length3000 mm
Wide-span versionno
Width500 mm
With coverno
