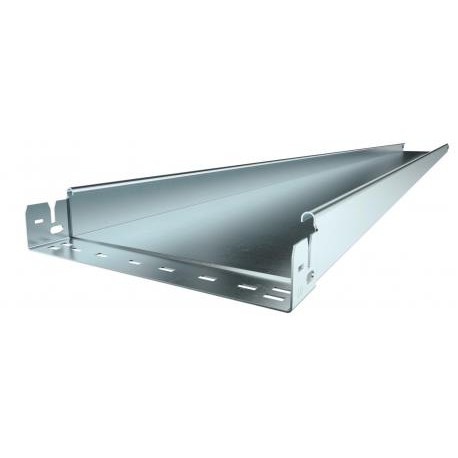

OBO BETTERMANN SKSMU 650 FS SKSMU 650 FS 6059698 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 60x500x3050, Strip-galvan.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SKSMU 650 FS 6059698 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 60x500x3050, Strip-galvan..

SKSMU 650 FS

6059698

OBO BETTERMANN

3 m.

Cable tray SKSMU unperf. with quick connector, 60x500x3050, Strip-galvanised, DIN EN 10147, Steel, St Cable tray SKS-Magic® 60, unperforated FS. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

SKSMU 650 FS 6059698 OBO BETTERMANN cable tray SKSMU unperf. with quick connector, 60x500x3050, Strip-galvan.. is a high-capacity unperforated steel cable tray utilized to organize and shield wide arrays of electrical wiring in extensive industrial networks. Solid-bottom construction ensures complete structural protection for grouped lines along primary routing channels. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 20,236 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 60x500x3050
  • Dimension B: 500 mm
  • Height: 60 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: no
  • NATO hole pattern: no
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Support spacing 1.5 m: 2,6 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate20,236 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension60x500x3050
Dimension B500 mm
Height60 mm
Length3050 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseno
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationno
Support spacing 1.5 m2,6 kN/m
Support spacing 2.0 m1,9 kN/m
Support spacing 2.5 m1,1 kN/m
Support spacing 3.0 m0,55 kN/m
SurfaceStrip galvanized
Type of connector, cable support systemClick fastening
Usable cross-section29800 mm²
Usable cross-section298 cm²
Usable length3000 mm
Wide-span versionno
Width500 mm
With coverno
