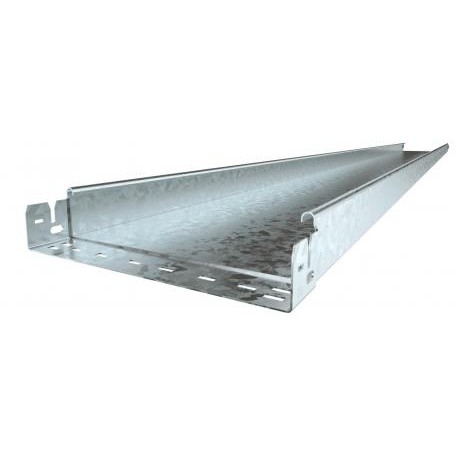

SKSMU 615 FT 6059707 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 60x150x3050, Hot-dip galv..
SKSMU 615 FT
6059707
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The SKSMU 615 FT unperforated cable tray supplied by Obo Bettermann delivers secure containment for electrical wiring requiring shielding from environmental contaminants. Solid unperforated trays are ideal for clean rooms and areas prone to falling debris. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 9,5537 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x150x3050
- Dimension B: 150 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1,5 mm
- Rustproof steel, pickled: no
- Side perforation: no
- Support spacing 1.5 m: 2,6 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 9,5537 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x150x3050 |
| Dimension B | 150 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
|---|---|
| Support spacing 1.5 m | 2,6 kN/m |
| Support spacing 2.0 m | 1,9 kN/m |
| Support spacing 2.5 m | 1,1 kN/m |
| Support spacing 3.0 m | 0,55 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 88 cm² |
| Usable cross-section | 8800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 150 mm |
| With cover | no |
