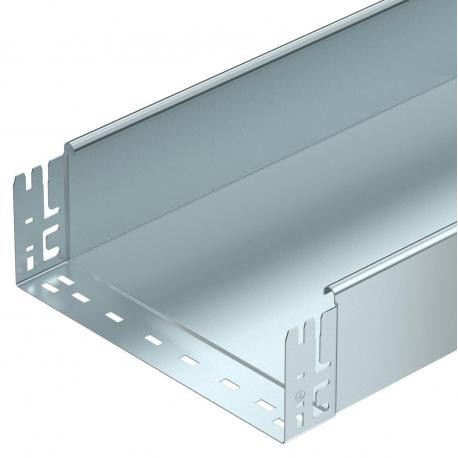

OBO BETTERMANN SKSMU 160 FT SKSMU 160 FT 6059865 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 110x600x3050, Hot-dip gal.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SKSMU 160 FT 6059865 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 110x600x3050, Hot-dip gal..

SKSMU 160 FT

6059865

OBO BETTERMANN

3 m.

Cable tray SKSMU unperf. with quick connector, 110x600x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cable tray SKS-Magic® 110, unperforated FT. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The SKSMU 160 FT from Obo Bettermann is an unperforated cable tray utilized for routing and mechanical protection of power and control cables in industrial structures. Cable trays form a robust backbone for organizing extensive wiring systems in demanding environments. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 22,2945 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 110x600x3050
  • Dimension B: 600 mm
  • Height: 110 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: no
  • NATO hole pattern: no
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Support spacing 1.5 m: 3 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate22,2945 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension110x600x3050
Dimension B600 mm
Height110 mm
Length3050 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseno
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationno
Support spacing 1.5 m3 kN/m
Support spacing 2.0 m2,4 kN/m
Support spacing 2.5 m1,76 kN/m
Support spacing 3.0 m1,2 kN/m
Support spacing 3.5 m0,84 kN/m
Support spacing 4.0 m0,8 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section65500 mm²
Usable cross-section655 cm²
Usable length3000 mm
Wide-span versionno
Width600 mm
With coverno
