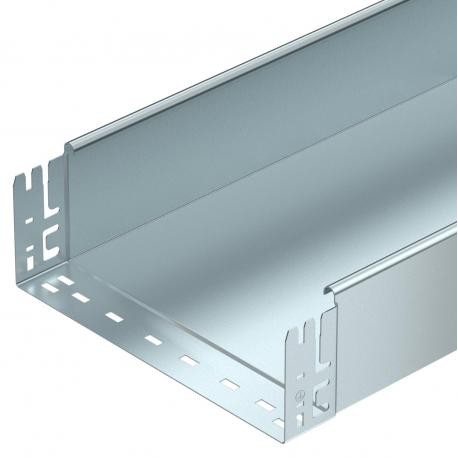

SKSMU 160 FS 6059848 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 110x600x3050, Strip-galva..
SKSMU 160 FS
6059848
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An unperforated Obo Bettermann SKSMU 160 FS cable tray provides a solid protective barrier for sensitive electrical cables routing through commercial or industrial plants. Solid-bottom trays help shield cables from dust, falling debris, and external electromagnetic interference.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 40,3164 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 110x600x3050
- Dimension B: 600 mm
- Height: 110 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1,5 mm
- Rustproof steel, pickled: no
- Side perforation: no
- Support spacing 1.5 m: 3 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 40,3164 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x600x3050 |
| Dimension B | 600 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Support spacing 1.5 m | 3 kN/m |
|---|---|
| Support spacing 2.0 m | 2,4 kN/m |
| Support spacing 2.5 m | 1,76 kN/m |
| Support spacing 3.0 m | 1,2 kN/m |
| Support spacing 3.5 m | 0,84 kN/m |
| Support spacing 4.0 m | 0,8 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 65500 mm² |
| Usable cross-section | 655 cm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 600 mm |
| With cover | no |
