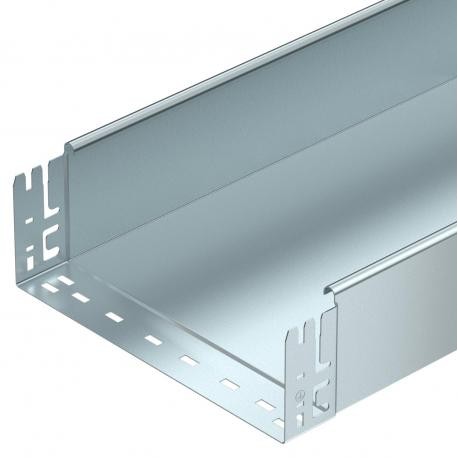

SKSMU 130 FS 6059842 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 110x300x3050, Strip-galva..
SKSMU 130 FS
6059842
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An unperforated Obo Bettermann SKSMU 130 FS cable tray offers secure containment and continuous mechanical protection for critical electrical cables. Solid tray designs prevent dust ingress and help maintain neat routing throughout commercial buildings.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 20,2665 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 110x300x3050
- Dimension B: 300 mm
- Height: 110 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1,5 mm
- Rustproof steel, pickled: no
- Side perforation: no
- Support spacing 1.5 m: 3 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 20,2665 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x300x3050 |
| Dimension B | 300 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Support spacing 1.5 m | 3 kN/m |
|---|---|
| Support spacing 2.0 m | 2,4 kN/m |
| Support spacing 2.5 m | 1,76 kN/m |
| Support spacing 3.0 m | 1,2 kN/m |
| Support spacing 3.5 m | 0,84 kN/m |
| Support spacing 4.0 m | 0,8 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 328 cm² |
| Usable cross-section | 32800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 300 mm |
| With cover | no |
