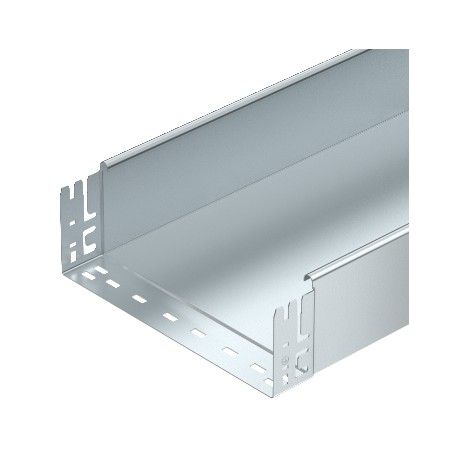

SKSMU 120 FS 6059840 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 110x200x3050, Strip-galva..
SKSMU 120 FS
6059840
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann SKSMU 120 FS cable tray unperf. with quick connector is used to safely route and protect electrical cables along structural paths in industrial and commercial facilities. Cable trays provide secure mechanical support and organization for complex wiring networks, reducing the risk of signal interference and physical damage.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 13,4836 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 110x200x3050
- Dimension B: 200 mm
- Height: 110 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1,5 mm
- Rustproof steel, pickled: no
- Side perforation: no
- Support spacing 1.5 m: 3 kN/m
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 13,4836 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x200x3050 |
| Dimension B | 200 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Support spacing 1.5 m | 3 kN/m |
|---|---|
| Support spacing 2.0 m | 2,4 kN/m |
| Support spacing 2.5 m | 1,76 kN/m |
| Support spacing 3.0 m | 1,2 kN/m |
| Support spacing 3.5 m | 0,84 kN/m |
| Support spacing 4.0 m | 0,8 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 218 cm² |
| Usable cross-section | 21800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 200 mm |
| With cover | no |
