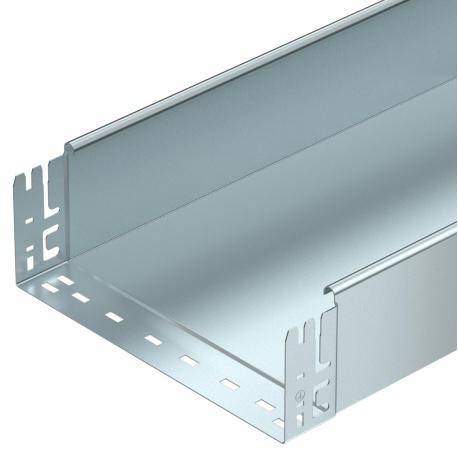

OBO BETTERMANN SKSMU 115 FT SKSMU 115 FT 6059855 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 110x150x3050, Hot-dip gal.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SKSMU 115 FT 6059855 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 110x150x3050, Hot-dip gal..

SKSMU 115 FT

6059855

OBO BETTERMANN

3 m.

Cable tray SKSMU unperf. with quick connector, 110x150x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St Cable tray SKS-Magic® 110, unperforated FT. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

SKSMU 115 FT 6059855 OBO BETTERMANN cable tray SKSMU unperf. with quick connector, 110x150x3050, Hot-dip gal.. is a hot-dip galvanized unperforated cable tray used to support and protect electrical cabling in demanding outdoor or industrial facility environments. Solid wall profiles keep internal wiring isolated from falling debris and moisture along structural installation paths. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 12,6879 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 110x150x3050
  • Dimension B: 150 mm
  • Height: 110 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: no
  • NATO hole pattern: no
  • Plate thickness: 1,5 mm
  • Rustproof steel, pickled: no
  • Side perforation: no
  • Support spacing 1.5 m: 3 kN/m

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate12,6879 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension110x150x3050
Dimension B150 mm
Height110 mm
Length3050 mm
Load test type according to IEC 61537Type II
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseno
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationno
Support spacing 1.5 m3 kN/m
Support spacing 2.0 m2,4 kN/m
Support spacing 3.0 m1,2 kN/m
Support spacing 4.0 m0,8 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section16100 mm²
Usable cross-section161 cm²
Usable length3000 mm
Wide-span versionno
Width150 mm
With coverno
