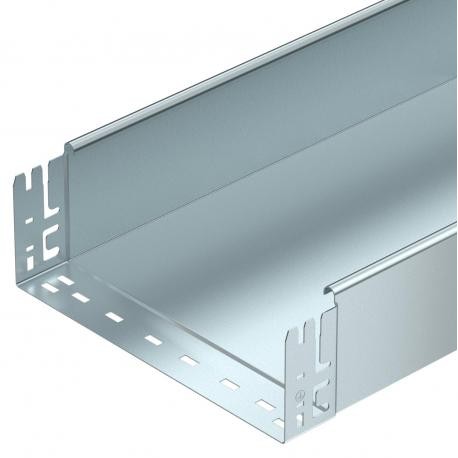

SKSMU 110 FS 6059836 OBO BETTERMANN Cable tray SKSMU unperf. with quick connector, 110x100x3050, Strip-galva..
SKSMU 110 FS
6059836
OBO BETTERMANN
3 m.
Cable tray SKSMU unperf. with quick connector, 110x100x3050, Strip-galvanised, DIN EN 10147, Steel, St
Cable tray SKS-Magic® 110, unperforated FS. Unperforated cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 9,3069 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x100x3050 |
| Dimension B | 100 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Support spacing 1.5 m | 3 kN/m |
|---|---|
| Support spacing 2.0 m | 2,4 kN/m |
| Support spacing 2.5 m | 1,76 kN/m |
| Support spacing 3.0 m | 1,2 kN/m |
| Support spacing 3.5 m | 0,84 kN/m |
| Support spacing 4.0 m | 0,8 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 108 cm² |
| Usable cross-section | 10800 mm² |
| Usable length | 3000 mm |
| Wide-span version | no |
| Width | 100 mm |
| With cover | no |
