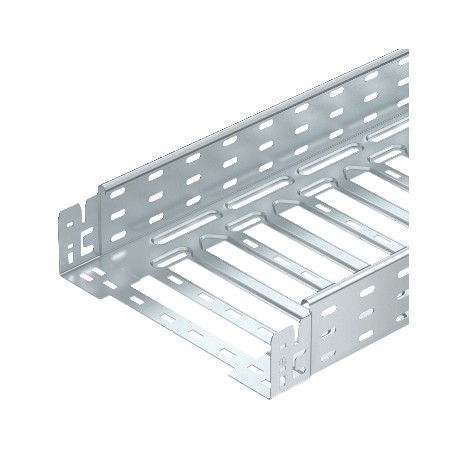

OBO BETTERMANN SKSM 860 FS SKSM 860 FS 6059542 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 85x600x3050, Strip-galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SKSM 860 FS 6059542 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 85x600x3050, Strip-galva..

SKSM 860 FS

6059542

OBO BETTERMANN

3 Pcs.

Cable tray SKSM perforated with quick connector, 85x600x3050, Strip-galvanised, DIN EN 10147, Steel, St Cable tray SKS-Magic® 85 FS. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A perforated Obo Bettermann SKSM 860 FS cable tray facilitates structured cable routing and efficient ventilation for power and control lines. Cable tray networks are essential for maintaining orderly and accessible electrical infrastructure in industrial plants.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 21,3841 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 85x600x3050
  • Dimension B: 600 mm
  • Dimension L: 480 mm
  • Dimension x: 496 mm
  • Dimension y: 562 mm
  • Height: 85 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate21,3841 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension85x600x3050
Dimension B600 mm
Dimension L480 mm
Dimension x496 mm
Dimension y562 mm
Height85 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
NEMA load class8C
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationyes
Sprinkler system useyes
Support spacing 1.5 m2,4 kN/m
Support spacing 2.0 m1,75 kN/m
Support spacing 2.5 m1,35 kN/m
Support spacing 3.0 m1,2 kN/m
SurfaceStrip galvanized
Type of connector, cable support systemClick fastening
Usable cross-section508 cm²
Usable cross-section50800 mm²
Wide-span versionno
Width600 mm
With coverno
