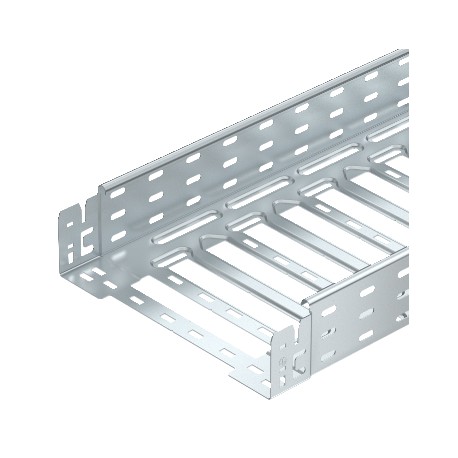

SKSM 850 FS 6059540 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 85x500x3050, Strip-galva..
SKSM 850 FS
6059540
OBO BETTERMANN
3 Pcs.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann perforated cable tray with quick connector (part number SKSM 850 FS) provides a reliable metal support structure for routing power and control cables across extensive commercial and industrial complexes. Perforations allow ventilation and easy cable tie-offs.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 18,6898 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 85x500x3050
- Dimension B: 500 mm
- Dimension L: 380 mm
- Dimension x: 396 mm
- Dimension y: 462 mm
- Height: 85 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 18,6898 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 85x500x3050 |
| Dimension B | 500 mm |
| Dimension L | 380 mm |
| Dimension x | 396 mm |
| Dimension y | 462 mm |
| Height | 85 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| NEMA load class | 8C |
|---|---|
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 2,4 kN/m |
| Support spacing 2.0 m | 1,75 kN/m |
| Support spacing 2.5 m | 1,35 kN/m |
| Support spacing 3.0 m | 1,2 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 423 cm² |
| Usable cross-section | 42300 mm² |
| Wide-span version | no |
| Width | 500 mm |
| With cover | no |
