View larger
Images are for illustrative purposes only. Please refer to data sheet for details

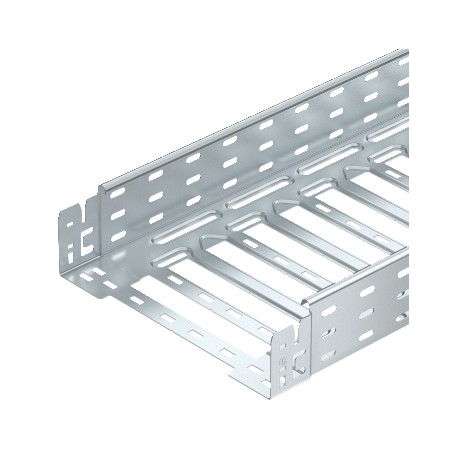

SKSM 820 FT 6059553 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 85x200x3050, Hot-dip gal..
SKSM 820 FT
6059553
OBO BETTERMANN
3 Pcs.
Cable tray SKSM perforated with quick connector, 85x200x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
SKSM SKSM 820 FT perforated cable tray, plug-in 85x200x3050 zinc Steel, St Hot-dip galvanized, DIN EN ISO 1461
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Cable tray with quick connection system, including all the relevant connection components for time-saving and economic installation, with beaded straight base perforation, 7 x 79 mm, for bracket mounting. All widths with cross beading for stabilisation and duct ventilation. Continuous side perforation, 7 x 20 mm, as additional connector perforation. From a cable tray width of 200 mm, they are suitable for use under sprinkler systems according to VdS guideline 2092 permeable cable tray system with 30% hole surface. The stock length is 3050 mm, the usable length when combined is 3000 mm The spring element FED 60 can be ordered separately as an accessory part (spare) for the Magic cable trays of side height 60 mm, 85 mm and 110 mm under the article number 6068859. Continuous equipotential bonding is guaranteed without additional components. VDE-tested cable tray system.
