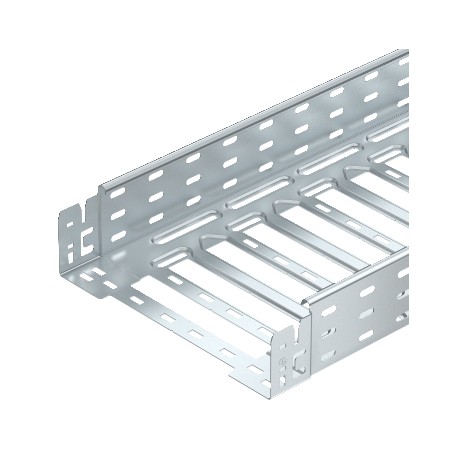

SKSM 810 FT 6059549 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 85x100x3050, Hot-dip gal..
SKSM 810 FT
6059549
OBO BETTERMANN
3 Pcs.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann SKSM 810 FT cable tray SKSM perforated with quick connector, 85x100x3050, Hot-dip gal.. provides dependable raceway support for electrical distribution and data lines in commercial and industrial buildings. Perforated trays keep cable runs organized while allowing effective heat dissipation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 7,6306 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 85x100x3050
- Dimension B: 100 mm
- Dimension L: 30 mm
- Dimension y: 62 mm
- Height: 85 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- NATO hole pattern: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,6306 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 85x100x3050 |
| Dimension B | 100 mm |
| Dimension L | 30 mm |
| Dimension y | 62 mm |
| Height | 85 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 3,4 kN/m |
| Support spacing 2.0 m | 2,7 kN/m |
| Support spacing 2.5 m | 2,07 kN/m |
| Support spacing 3.0 m | 1,5 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 83 cm² |
| Usable cross-section | 8300 mm² |
| Wide-span version | no |
| Width | 100 mm |
| With cover | no |
