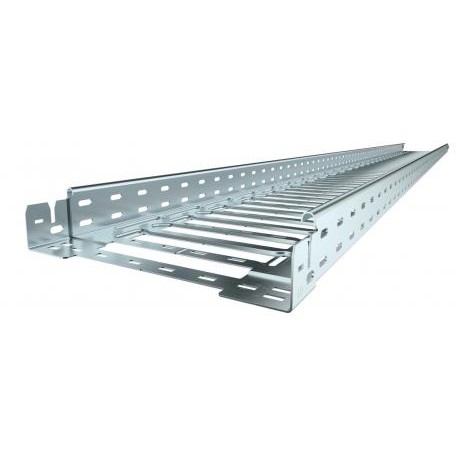

OBO BETTERMANN SKSM 660 FS SKSM 660 FS 6059468 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 60x600x3050, Strip-galva.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SKSM 660 FS 6059468 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 60x600x3050, Strip-galva..

SKSM 660 FS

6059468

OBO BETTERMANN

3 m.

Cable tray SKSM perforated with quick connector, 60x600x3050, Strip-galvanised, DIN EN 10147, Steel, St Cable tray SKS-Magic® FS 60. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Manufactured by Obo Bettermann, the SKSM 660 FS perforated cable tray provides reliable support and organization for heavy wire bundles in commercial builds. Perforated profiles promote optimal ventilation while maintaining rigid structural integrity for long cable spans. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 20,0062 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 60x600x3050
  • Dimension B: 600 mm
  • Dimension L: 480 mm
  • Dimension x: 496 mm
  • Dimension y: 562 mm
  • Fire protection: Use of fire protection ceilings
  • Height: 60 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Steel

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate20,0062 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension60x600x3050
Dimension B600 mm
Dimension L480 mm
Dimension x496 mm
Dimension y562 mm
Fire protectionUse of fire protection ceilings
Height60 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
NEMA load class8C
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationyes
Sprinkler system useyes
Support spacing 1.5 m2,6 kN/m
Support spacing 2.0 m1,8 kN/m
Support spacing 2.5 m1,2 kN/m
Support spacing 3.0 m0,8 kN/m
SurfaceStrip galvanized
Type of connector, cable support systemClick fastening
Usable cross-section35800 mm²
Usable cross-section358 cm²
Wide-span versionno
Width600 mm
With coverno
