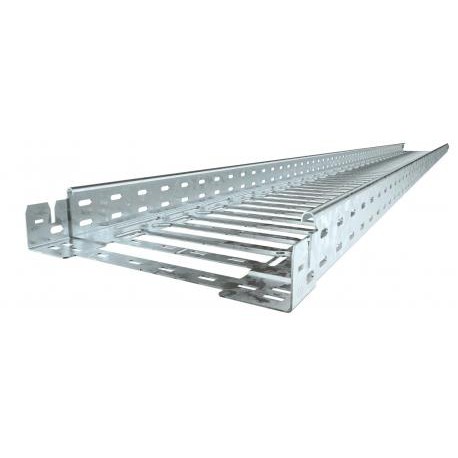

OBO BETTERMANN SKSM 640 FT SKSM 640 FT 6059481 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 60x400x3050, Hot-dip gal.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SKSM 640 FT 6059481 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 60x400x3050, Hot-dip gal..

SKSM 640 FT

6059481

OBO BETTERMANN

3 m.

Cable tray SKSM perforated with quick connector, 60x400x3050, Hot-dip galvanised, DIN EN ISO 1461, Steel, St SKS-Magic® 60 FT cable tray. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Perforated to allow ventilation and simple cable fastening, this Obo Bettermann SKSM 640 FT cable tray supports power and communication lines. Cable management systems are vital for organizing complex electrical layouts safely.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • CO2 Footprint (GWP) Cradle-to-Gate: 13,5777 kg CO2e / 1 Meter
  • Colour: zinc
  • Connector version: Integrated connector
  • Dimension: 60x400x3050
  • Dimension B: 400 mm
  • Dimension L: 280 mm
  • Dimension x: 296 mm
  • Dimension y: 362 mm
  • Height: 60 mm
  • Length: 3050 mm
  • Load test type according to IEC 61537: Type II
  • Magnetic shield insulation with cover: 50 dB
  • Magnetic shield insulation without cover: 20 dB
  • Maintain electrical functions: no
  • Material: Steel
  • Mounting perforation in base: yes

More info

▲
CO2 Footprint (GWP) Cradle-to-Gate13,5777 kg CO2e / 1 Meter
Colourzinc
Connector versionIntegrated connector
Dimension60x400x3050
Dimension B400 mm
Dimension L280 mm
Dimension x296 mm
Dimension y362 mm
Height60 mm
Length3050 mm
Load test type according to IEC 61537Type II
Magnetic shield insulation with cover50 dB
Magnetic shield insulation without cover20 dB
Maintain electrical functionsno
MaterialSteel
Mounting perforation in baseyes
NATO hole patternno
Plate thickness1,5 mm
Rustproof steel, pickledno
Side perforationyes
Sprinkler system useyes
Support spacing 1.5 m2,7 kN/m
Support spacing 2.0 m2,1 kN/m
Support spacing 2.5 m1,47 kN/m
Support spacing 3.0 m0,8 kN/m
SurfaceHot-dip galvanised
Type of connector, cable support systemClick fastening
Usable cross-section23800 mm²
Usable cross-section238 cm²
Wide-span versionno
Width400 mm
With coverno
