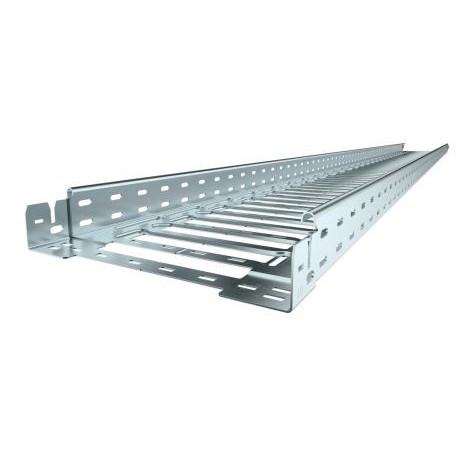

SKSM 640 FS 6059464 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 60x400x3050, Strip-galva..
SKSM 640 FS
6059464
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann perforated cable tray with quick connector (part number SKSM 640 FS) serves as a structured metal pathway used to route and secure power, control, and communication cables throughout industrial automation setups. The integrated connector reduces setup labor.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 14,6432 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x400x3050
- Dimension B: 400 mm
- Dimension L: 280 mm
- Dimension x: 296 mm
- Dimension y: 362 mm
- Fire protection: Use of fire protection ceilings
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 14,6432 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x400x3050 |
| Dimension B | 400 mm |
| Dimension L | 280 mm |
| Dimension x | 296 mm |
| Dimension y | 362 mm |
| Fire protection | Use of fire protection ceilings |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| NEMA load class | 8C |
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 2,7 kN/m |
| Support spacing 2.0 m | 2,1 kN/m |
| Support spacing 2.5 m | 1,47 kN/m |
| Support spacing 3.0 m | 0,8 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 23800 mm² |
| Usable cross-section | 238 cm² |
| Wide-span version | no |
| Width | 400 mm |
| With cover | no |
