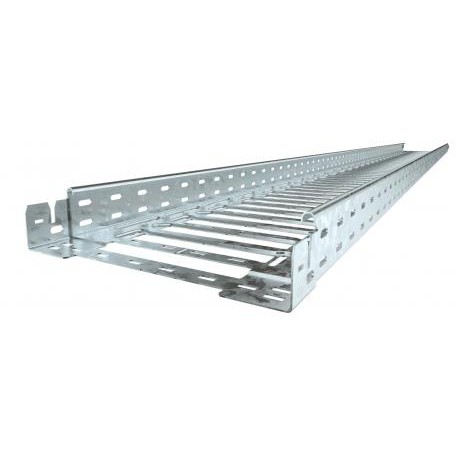

SKSM 615 FT 6059475 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 60x150x3050, Hot-dip gal..
SKSM 615 FT
6059475
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Perforated cable trays provide essential ventilation and structured routing pathways for electrical cables in manufacturing facilities and commercial buildings. The Obo Bettermann SKSM 615 FT incorporates quick-connect functionality to optimize installation timelines.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 7,615 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 60x150x3050
- Dimension B: 150 mm
- Dimension L: 30 mm
- Dimension x: 46 mm
- Dimension y: 112 mm
- Height: 60 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 7,615 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 60x150x3050 |
| Dimension B | 150 mm |
| Dimension L | 30 mm |
| Dimension x | 46 mm |
| Dimension y | 112 mm |
| Height | 60 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
|---|---|
| Plate thickness | 1,5 mm |
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 3 kN/m |
| Support spacing 2.0 m | 2,25 kN/m |
| Support spacing 2.5 m | 1,58 kN/m |
| Support spacing 3.0 m | 1 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 88 cm² |
| Usable cross-section | 8800 mm² |
| Wide-span version | no |
| Width | 150 mm |
| With cover | no |
