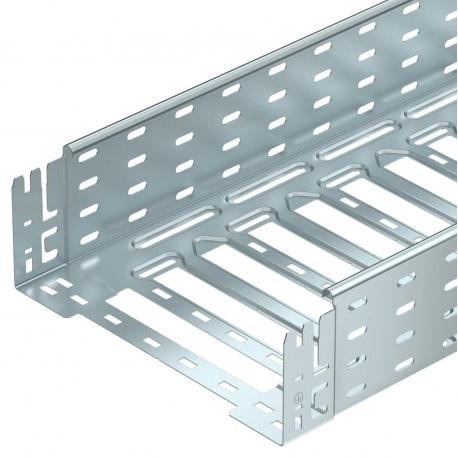

OBO BETTERMANN SKSM 150 FS SKSM 150 FS 6059624 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 110x500x3050, Strip-galv.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SKSM 150 FS 6059624 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 110x500x3050, Strip-galv..

SKSM 150 FS

6059624

OBO BETTERMANN

3 m.

Cable tray SKSM perforated with quick connector, 110x500x3050, Strip-galvanised, DIN EN 10147, Steel, St SKSM SKSM 150 FS cable tray, perforated, plug-in 110x500x3050 Steel, St, strip galvanized, DIN EN 10346 SKS-Magic® 110 FS cable tray. Cable tray with integrated quick fixing system. The usable length of the cable tray is 3,000 mm.La cable tray has a continuous side perforation of 7 x 20 mm for the installation of additional joining and mounting components. From a tray width of 200 mm, with 30% perforation percentage, suitable according to the VdS 2092 standard for use under fire sprinkler systems.

Cables > Cable tray/wide span cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Cable tray with quick connection system, including all the relevant connection components for time-saving and economic installation, with beaded straight base perforation, 7 x 79 mm, for bracket mounting. All widths with cross beading for stabilisation and duct ventilation. Continuous side perforation, 7 x 20 mm, as additional connector perforation. From a cable tray width of 200 mm, they are suitable for use under sprinkler systems according to VdS guideline 2092 permeable cable tray system with 30% hole surface. The stock length is 3050 mm, the usable length when combined is 3000 mm The spring element FED 60 can be ordered separately as an accessory part (spare) for the Magic cable trays of side height 60 mm, 85 mm and 110 mm under the article number 6068859. Continuous equipotential bonding is guaranteed without additional components. VDE-tested cable tray system.
ETIM for 6059624 Cable tray, ladder and wire basket systems (EC000047)
Feature Name Feature Value
Height (EF000040) 110 mm
Width (EF000008) 500 mm
Material thickness (EF000386) 1.5 mm
Length (EF001438) 3050 mm
Useful cross section (EF005140) 54800 mm²
With cover (EF007965) No
Side perforation (EF001122) Yes
Bottom perforation (EF004545) Yes
NATO-mounting holes (EF006059) No
Model (EF000010) Integrated coupler
Type of connector (EF000141) Click in
Suitable for circuit integrity (EF007806) No
Material (EF002169) Steel
Surface protection (EF000139) Pre-galvanised
Weight (EF000167) 6.03 kg/m
Load test type according to IEC 61537 (EF015362) Type II
Possible support spacing (EF017261) 1.5 m
Safe working load according to IEC 61537 with support spacing 1.5 m (EF017264) 3000
Safe working load according to IEC 61537 with support spacing 2.0 m (EF017265) 2340
Safe working load according to IEC 61537 with support spacing 2.5 m (EF017266) 1740
Safe working load according to IEC 61537 with support spacing 3.0 m (EF017267) 1200
Safe working load according to IEC 61537 with support spacing 4.0 m (EF017268) 300
