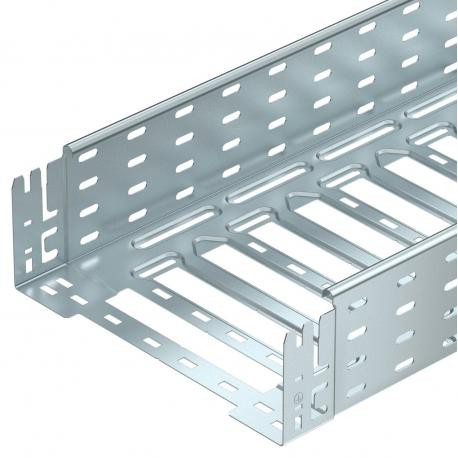

SKSM 140 FS 6059622 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 110x400x3050, Strip-galv..
SKSM 140 FS
6059622
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann SKSM 140 FS cable tray SKSM perforated with quick connector offers a reliable infrastructure solution for managing power cables and signal lines in industrial complexes. The perforated base and side walls assist with ventilation and secure cable retention.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 17,3208 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 110x400x3050
- Dimension B: 400 mm
- Dimension L: 280 mm
- Dimension x: 296 mm
- Dimension y: 362 mm
- Height: 110 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 17,3208 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x400x3050 |
| Dimension B | 400 mm |
| Dimension L | 280 mm |
| Dimension x | 296 mm |
| Dimension y | 362 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| NEMA load class | 8C |
| Plate thickness | 1,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 3 kN/m |
| Support spacing 2.0 m | 2,5 kN/m |
| Support spacing 2.5 m | 2 kN/m |
| Support spacing 3.0 m | 1,5 kN/m |
| Support spacing 3.5 m | 1 kN/m |
| Support spacing 4.0 m | 0,5 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 43800 mm² |
| Usable cross-section | 438 cm² |
| Wide-span version | no |
| Width | 400 mm |
| With cover | no |
