View larger
Images are for illustrative purposes only. Please refer to data sheet for details

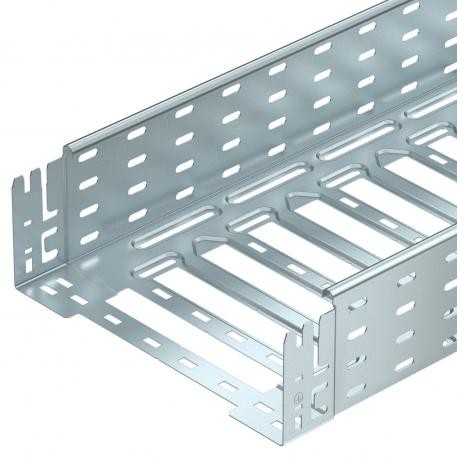

SKSM 130 FS 6059620 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 110x300x3050, Strip-galv..
SKSM 130 FS
6059620
OBO BETTERMANN
3 m.
Cable tray SKSM perforated with quick connector, 110x300x3050, Strip-galvanised, DIN EN 10147, Steel, St
Cable tray SKS-Magic® 110 FS. Cable tray with integrated quick fastening system. The usable length of the cable tray is 3,000 mm.The cable tray has continuous side perforations of 7 x 20 mm for the installation of additional connection and mounting components.From a cable tray width of 200 mm with 30% hole surface, suitable for use under sprinkler systems according to VdS guideline 2092.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 14,6412 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x300x3050 |
| Dimension B | 300 mm |
| Dimension L | 180 mm |
| Dimension x | 196 mm |
| Dimension y | 262 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| NEMA load class | 8C |
| Plate thickness | 1,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Sprinkler system use | yes |
| Support spacing 1.5 m | 3 kN/m |
| Support spacing 2.0 m | 2,5 kN/m |
| Support spacing 2.5 m | 2 kN/m |
| Support spacing 3.0 m | 1,5 kN/m |
| Support spacing 3.5 m | 1 kN/m |
| Support spacing 4.0 m | 0,5 kN/m |
| Surface | Strip galvanized |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 32800 mm² |
| Usable cross-section | 328 cm² |
| Wide-span version | no |
| Width | 300 mm |
| With cover | no |
