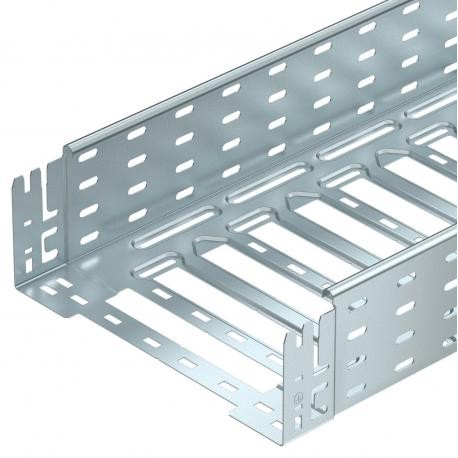

SKSM 110 FT 6059631 OBO BETTERMANN Cable tray SKSM perforated with quick connector, 110x100x3050, Hot-dip ga..
SKSM 110 FT
6059631
OBO BETTERMANN
3 m.
Cables > Cable tray/wide span cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann perforated cable tray with quick connector (part number SKSM 110 FT) creates a sturdy overhead or wall-mounted pathway used to route, support, and protect power and data cables throughout industrial facilities. The integrated connector design speeds up mechanical installation runs.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- CO2 Footprint (GWP) Cradle-to-Gate: 8,9928 kg CO2e / 1 Meter
- Colour: zinc
- Connector version: Integrated connector
- Dimension: 110x100x3050
- Dimension B: 100 mm
- Dimension L: 30 mm
- Dimension y: 62 mm
- Height: 110 mm
- Length: 3050 mm
- Load test type according to IEC 61537: Type II
- Magnetic shield insulation with cover: 50 dB
- Magnetic shield insulation without cover: 20 dB
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: yes
- NATO hole pattern: no
More info
▲| CO2 Footprint (GWP) Cradle-to-Gate | 8,9928 kg CO2e / 1 Meter |
|---|---|
| Colour | zinc |
| Connector version | Integrated connector |
| Dimension | 110x100x3050 |
| Dimension B | 100 mm |
| Dimension L | 30 mm |
| Dimension y | 62 mm |
| Height | 110 mm |
| Length | 3050 mm |
| Load test type according to IEC 61537 | Type II |
| Magnetic shield insulation with cover | 50 dB |
| Magnetic shield insulation without cover | 20 dB |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Plate thickness | 1,5 mm |
|---|---|
| Rustproof steel, pickled | no |
| Side perforation | yes |
| Support spacing 1.5 m | 3 kN/m |
| Support spacing 2.0 m | 2,57 kN/m |
| Support spacing 2.5 m | 2,14 kN/m |
| Support spacing 3.0 m | 1,7 kN/m |
| Support spacing 3.5 m | 1,25 kN/m |
| Support spacing 4.0 m | 0,8 kN/m |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Click fastening |
| Usable cross-section | 10800 mm² |
| Usable cross-section | 108 cm² |
| Wide-span version | no |
| Width | 100 mm |
| With cover | no |
