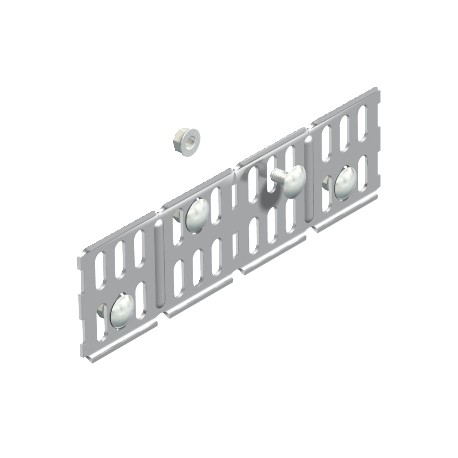

OBO BETTERMANN RWVL 60 A2 RWVL 60 VA4301 6067662 OBO BETTERMANN Straight connector + angle conne for cable tray, horizontal, 60x200, S.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RWVL 60 VA4301 6067662 OBO BETTERMANN Straight connector + angle conne for cable tray, horizontal, 60x200, S..

RWVL 60 A2

6067662

OBO BETTERMANN

10 Pcs.

Straight connector + angle conne for cable tray, horizontal, 60x200, Stainless steel, grade 304, VA, 1.4301 Straight and angle connector 60 A2. Straight and angle connector for cable trays and fittings with a side height of 60 mm.

Cables > Connector for cable support system
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Obo Bettermann part number RWVL 60 A2 functions as a straight connector and angle connector for cable tray, horizontal, facilitating both linear joining and angled routing within raceway assemblies. Such dual-purpose hardware pieces are essential for customizing complex cable distribution paths in industrial facilities. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Adjustable connector, horizontal: no
  • Articulated connector, vertical: no
  • CO2 Footprint (GWP) Cradle-to-Gate: 1,0355 kg CO2e / 1 Piece
  • Colour: stainless steel
  • Connection type: Screw connector
  • Dimension: 200 x 56
  • Dimension: 60x200
  • Height: 2 in
  • Height: 60 mm
  • Length: 200 mm
  • Maintain electrical functions: no
  • Material: Stainless steel 1.4301
  • Plate thickness: 2 mm
  • Rustproof steel, pickled: no
  • Suitable for cable ladder: no
  • Suitable for cable tray: yes

More info

▲
Adjustable connector, horizontalno
Articulated connector, verticalno
CO2 Footprint (GWP) Cradle-to-Gate1,0355 kg CO2e / 1 Piece
Colourstainless steel
Connection typeScrew connector
Dimension200 x 56
Dimension60x200
Height2 in
Height60 mm
Length200 mm
Maintain electrical functionsno
MaterialStainless steel 1.4301
Plate thickness2 mm
Rustproof steel, pickledno
Suitable for cable ladderno
Suitable for cable trayyes
Suitable for cable tray system height60 mm
Suitable for mesh cable trayno
SurfaceBright, treated
Version forAngle connector
Width4 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
