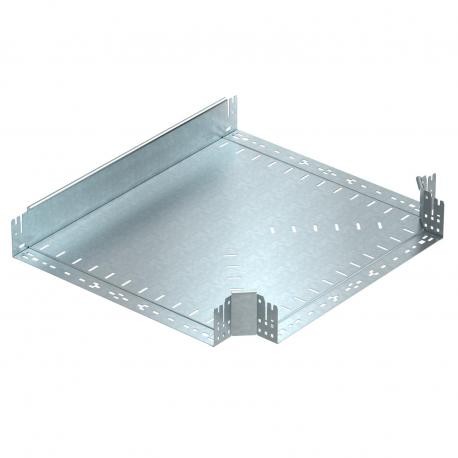

OBO BETTERMANN RTM 160 FT RTM 160 FT 6042042 OBO BETTERMANN T-branch piece with quick connector, 110x600, Hot-dip galvanised, DIN EN I.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RTM 160 FT 6042042 OBO BETTERMANN T-branch piece with quick connector, 110x600, Hot-dip galvanised, DIN EN I..

RTM 160 FT

6042042

OBO BETTERMANN

1 Pcs.

T-branch piece with quick connector, 110x600, Hot-dip galvanised, DIN EN ISO 1461, Steel, St T-branch piece RTM 160 FT, with quick connection 110x600 Steel, St, Hot-dip galvanized, DIN EN ISO 1461 Magic T-Branch 110 FT. T-branch piece with quick connection system. For all types of cable trays with a wing height of 110 mm.

Cables > Tee for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for demanding industrial routing applications, the Obo Bettermann T-branch piece with quick connector, 110x600, Hot-dip galvanised, DIN EN I.. (RTM 160 FT) serves as a robust horizontal tee intersection. This fitting safely splits major cable runs, directing electrical conductors systematically across industrial plant floors and infrastructure. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for cable tray height (EF004822): 110 mm
  • Suitable for cable tray width (EF004820): 600 mm
  • Construction type (EF000767): Horizontal tee
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Integrated coupler
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Hot dip galvanized

More info

▲
T branch piece with quick connector system. For all cable tray types of 110 mm side height.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
