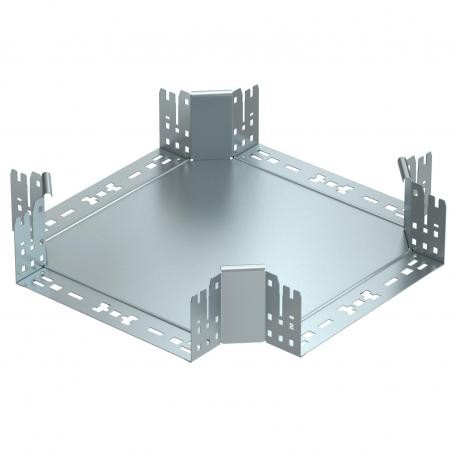

OBO BETTERMANN RKM 130 FS RKM 130 FS 7027167 OBO BETTERMANN Intersection with quick connector, 110x300, Strip-galvanised, DIN EN 10147.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RKM 130 FS 7027167 OBO BETTERMANN Intersection with quick connector, 110x300, Strip-galvanised, DIN EN 10147..

RKM 130 FS

7027167

OBO BETTERMANN

1 Pcs.

Intersection with quick connector, 110x300, Strip-galvanised, DIN EN 10147, Steel, St RKM 130 FS crossover, with quick connection 110x300 Steel, St, strip galvanized, DIN EN 10346 Magic 110 FS crossover. Crossover with quick connect system. For all types of cable trays with a wing height of 110 mm.

Cables > Cross piece for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Enabling multi-directional cable routing, this Obo Bettermann Intersection with quick connector, 110x300, Strip-galvanised, DIN EN 10147.. (RKM 130 FS) acts as a four-way junction fitting within industrial tray networks. Installers use these intersections to manage complex cable crossings while preserving the structural integrity of the installation. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Suitable for cable tray height (EF004822): 110 mm
  • Suitable for cable tray width (EF004820): 300 mm
  • NATO-mounting holes (EF006059): No
  • Model (EF000010): Integrated coupler
  • Suitable for circuit integrity (EF007806): No
  • Material (EF002169): Steel
  • Stainless steel, pickled (EF006388): No
  • Surface protection (EF000139): Pre-galvanised

More info

▲
Intersection with quick connector system. For all cable tray types of 110 mm side height.

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
