RGBV 660 FT 7079605 OBO BETTERMANN Articulated bend vertical, 60x600, Hot-dip galvanised, DIN EN ISO 1461, S..
RGBV 660 FT
7079605
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

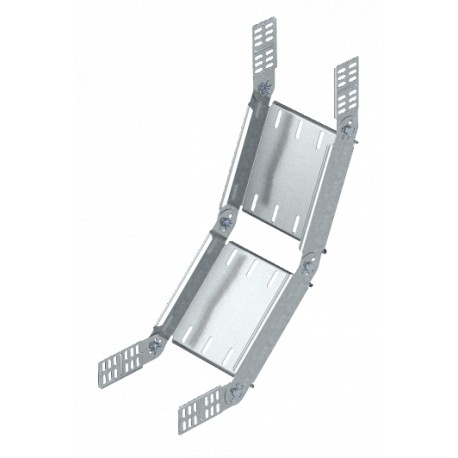

The Obo Bettermann RGBV 660 FT articulated bend vertical bridges vertical elevation changes smoothly within expansive cable routing grids. Industrial installers rely on such fittings to maintain cable safety standards across multi-tier layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical, rising/falling
- CO2 Footprint (GWP) Cradle-to-Gate: 14,2153 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Supplied connectors
- Dimension: 60x600
- Dimension R: 400 mm
- Height: 2 in
- Height: 60 mm
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 14,2153 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Supplied connectors |
| Dimension | 60x600 |
| Dimension R | 400 mm |
| Height | 2 in |
| Height | 60 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type | Adjustable bend_complete |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 24 in |
| Width | 600 mm |
