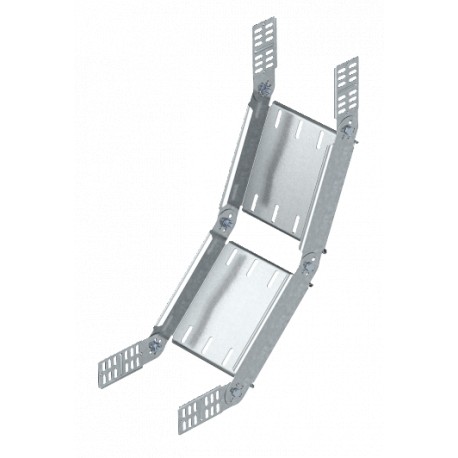

RGBV 650 FS 7006411 OBO BETTERMANN Articulated bend vertical, 60x500, Strip-galvanised, DIN EN 10147, Steel,..
RGBV 650 FS
7006411
OBO BETTERMANN
1 Pcs.
Articulated bend vertical, 60x500, Strip-galvanised, DIN EN 10147, Steel, St
90° adjustable bend, vertical 60 FS. 90° adjustable vertical bend, for all cable tray types with a side height of 60 mm.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann RGBV 650 FS Articulated bend vertical offers flexibility when routing cable tray systems through complex vertical alignment adjustments. Such hardware simplifies layout modifications in crowded mechanical spaces. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical, rising/falling
- CO2 Footprint (GWP) Cradle-to-Gate: 12,4395 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Supplied connectors
- Dimension: 60x500
- Dimension R: 400 mm
- Height: 2 in
- Height: 60 mm
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 12,4395 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Supplied connectors |
| Dimension | 60x500 |
| Dimension R | 400 mm |
| Height | 2 in |
| Height | 60 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type | Adjustable bend_complete |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 20 in |
| Width | 500 mm |
