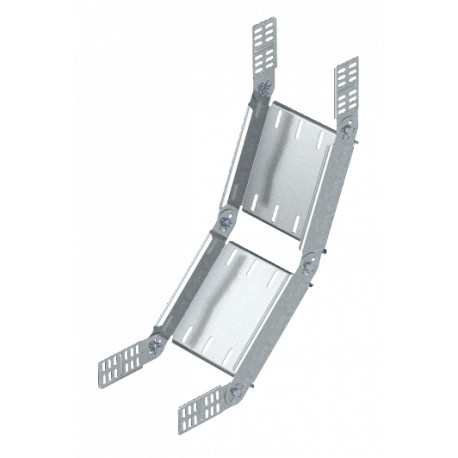

RGBV 630 FS 7006365 OBO BETTERMANN Articulated bend vertical, 60x300, Strip-galvanised, DIN EN 10147, Steel,..
RGBV 630 FS
7006365
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann RGBV 630 FS articulated bend vertical provides flexible directional routing for cable containment systems, adjusting smoothly to various elevation shifts. These parts streamline complex facility distribution pathways.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical, rising/falling
- CO2 Footprint (GWP) Cradle-to-Gate: 8,768 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Supplied connectors
- Dimension: 60x300
- Dimension R: 400 mm
- Height: 60 mm
- Height: 2 in
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 8,768 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Supplied connectors |
| Dimension | 60x300 |
| Dimension R | 400 mm |
| Height | 60 mm |
| Height | 2 in |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type | Adjustable bend_complete |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 12 in |
| Width | 300 mm |
