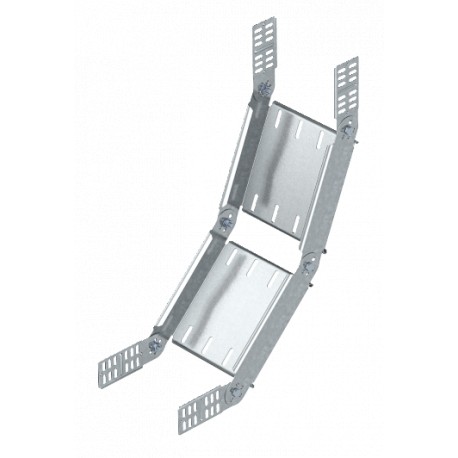

OBO BETTERMANN RGBV 620 FT RGBV 620 FT 7079206 OBO BETTERMANN Articulated bend vertical, 60x200, Hot-dip galvanised, DIN EN ISO 1461, S..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

RGBV 620 FT 7079206 OBO BETTERMANN Articulated bend vertical, 60x200, Hot-dip galvanised, DIN EN ISO 1461, S..

Name: RGBV 620 FT 7079206 OBO BETTERMANN Articulated bend vertical, 60x200, Hot-dip galvanised, DIN EN ISO 1461, S..
Brand: OBO BETTERMANN
SKU: 7079206

Reference: RGBV 620 FT

Code: 7079206

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

Articulated bend vertical, 60x200, Hot-dip galvanised, DIN EN ISO 1461, Steel, St 90° adjustable bend, vertical 60 FT. 90° adjustable vertical bend, for all cable tray types with a side height of 60 mm.

Categories:
Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Obo Bettermann RGBV 620 FT articulated bend vertical provides reliable directional changes in cable management runs, guiding wire bundles safely around architectural obstacles. This component is typically deployed in industrial and commercial electrical infrastructures to route containment systems seamlessly across varying elevations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

Bend (angle): 90°
Change of direction: Vertical, rising/falling
CO2 Footprint (GWP) Cradle-to-Gate: 6,9654 kg CO2e / 1 Piece
Colour: zinc
Connector version: Supplied connectors
Dimension: 60x200
Dimension R: 400 mm
Height: 2 in
Height: 60 mm
Maintain electrical functions: no
Material: Steel
Mounting perforation in base: no
NATO hole pattern: no
Plate thickness: 1 mm
Rustproof steel, pickled: no
Side perforation: no

More info

▲

Bend (angle)	90°
Change of direction	Vertical, rising/falling
CO2 Footprint (GWP) Cradle-to-Gate	6,9654 kg CO2e / 1 Piece
Colour	zinc
Connector version	Supplied connectors
Dimension	60x200
Dimension R	400 mm
Height	2 in
Height	60 mm
Maintain electrical functions	no
Material	Steel

Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	no
Surface	Hot-dip galvanised
Type	Adjustable bend_complete
Type of connector, cable support system	Screwed
Wide-span version	no
Width	8 in
Width	200 mm
