View larger
Images are for illustrative purposes only. Please refer to data sheet for details

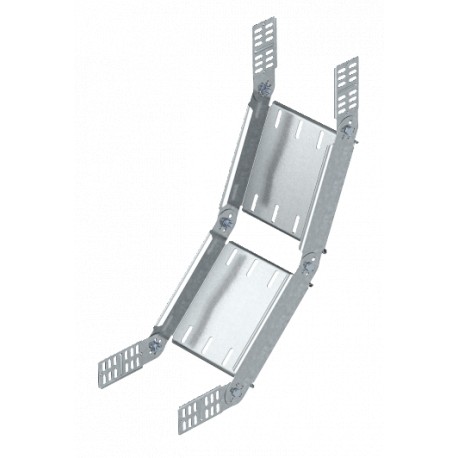

RGBV 615 FT 7079141 OBO BETTERMANN Articulated bend vertical, 60x150, Hot-dip galvanised, DIN EN ISO 1461, S..
RGBV 615 FT
7079141
OBO BETTERMANN
1 Pcs.
Articulated bend vertical, 60x150, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
90° adjustable bend, vertical 60 FT. 90° adjustable vertical bend, for all cable tray types with a side height of 60 mm.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,1462 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Supplied connectors |
| Dimension | 60x150 |
| Dimension R | 400 mm |
| Height | 2 in |
| Height | 60 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type | Adjustable bend_complete |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 6 in |
| Width | 150 mm |
