View larger
Images are for illustrative purposes only. Please refer to data sheet for details

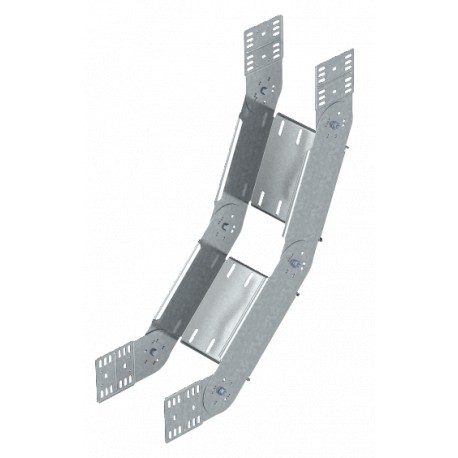

RGBV 150 FS 7006705 OBO BETTERMANN Articulated bend vertical, 110x500, Strip-galvanised, DIN EN 10147, Steel..
RGBV 150 FS
7006705
OBO BETTERMANN
1 Pcs.
Articulated bend vertical, 110x500, Strip-galvanised, DIN EN 10147, Steel, St
90° adjustable bend, vertical 110 FS. 90° adjustable vertical bend, for all cable tray types with a side height of 110 mm.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 19,4991 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Supplied connectors |
| Dimension | 110x500 |
| Dimension R | 400 mm |
| Height | 110 mm |
| Height | 4 in |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type | Adjustable bend_complete |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 20 in |
| Width | 500 mm |
