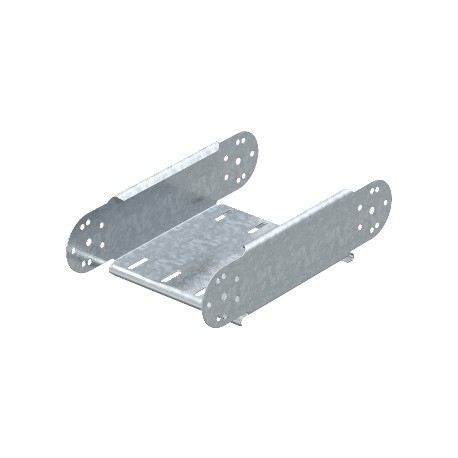

OBO BETTERMANN RGBEV 860 FS RGBEV 860 FS 7005563 OBO BETTERMANN Articulated bend element vertical, 85x600, Strip-galvanised, DIN EN 1014..

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

RGBEV 860 FS 7005563 OBO BETTERMANN Articulated bend element vertical, 85x600, Strip-galvanised, DIN EN 1014..

Name: RGBEV 860 FS 7005563 OBO BETTERMANN Articulated bend element vertical, 85x600, Strip-galvanised, DIN EN 1014..
Brand: OBO BETTERMANN
SKU: 7005563

Reference: RGBEV 860 FS

Code: 7005563

Manufacturer: OBO BETTERMANN

Units per package: 1 Pcs.

Description:

Articulated bend element vertical, 85x600, Strip-galvanised, DIN EN 10147, Steel, St Adjustable bend element, vertical 85 FS. Adjustable vertical bend element, for all cable tray types with a side height of 85 mm.

Categories:
Cables > Bend for cable tray
Rest sheet tray

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Obo Bettermann RGBEV 860 FS articulated bend element vertical is used in cable management routing systems to navigate directional changes along vertical planes while maintaining structural support for cable runs. These components facilitate smooth elevation adjustments in industrial and commercial installations.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

Bend (angle): Adjustable
Change of direction: Vertical, rising/falling
CO2 Footprint (GWP) Cradle-to-Gate: 6,7236 kg CO2e / 1 Piece
Colour: zinc
Connector version: Without connectors
Dimension: 85x600
Dimension B: 600 mm
Height: 85 mm
Height: 3 in
Maintain electrical functions: no
Material: Steel
Mounting perforation in base: no
NATO hole pattern: no
Plate thickness: 1 mm
Rustproof steel, pickled: no
Side perforation: no

More info

▲

Bend (angle)	Adjustable
Change of direction	Vertical, rising/falling
CO2 Footprint (GWP) Cradle-to-Gate	6,7236 kg CO2e / 1 Piece
Colour	zinc
Connector version	Without connectors
Dimension	85x600
Dimension B	600 mm
Height	85 mm
Height	3 in
Maintain electrical functions	no
Material	Steel

Mounting perforation in base	no
NATO hole pattern	no
Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	no
Surface	Strip galvanized
Type	Adjustable bend element
Type of connector, cable support system	Screwed
Wide-span version	no
Width	24 in
Width	600 mm
