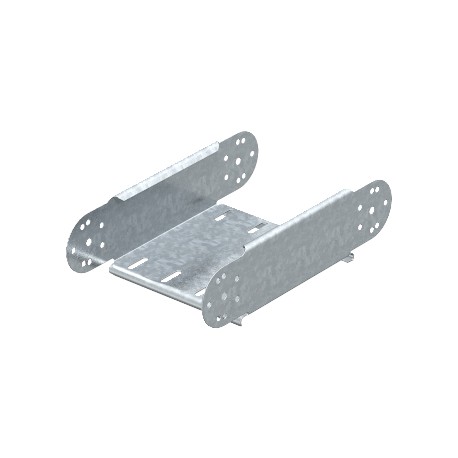

RGBEV 840 FS 7005520 OBO BETTERMANN Articulated bend element vertical, 85x400, Strip-galvanised, DIN EN 1014..
RGBEV 840 FS
7005520
OBO BETTERMANN
1 Pcs.
Articulated bend element vertical, 85x400, Strip-galvanised, DIN EN 10147, Steel, St
Adjustable bend element, vertical 85 FS. Adjustable vertical bend element, for all cable tray types with a side height of 85 mm.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | Adjustable |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,1446 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 85x400 |
| Dimension B | 400 mm |
| Height | 85 mm |
| Height | 3 in |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type | Adjustable bend element |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 16 in |
| Width | 400 mm |
