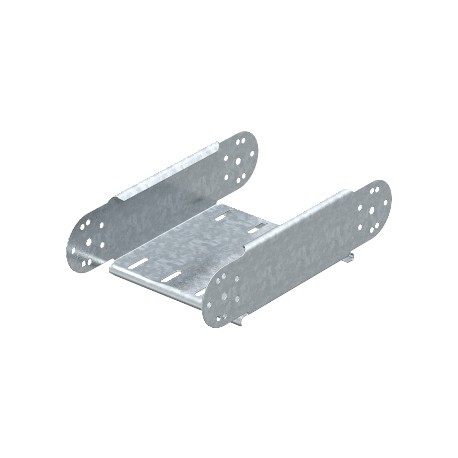

RGBEV 830 FT 7076304 OBO BETTERMANN Articulated bend element vertical, 85x300, Hot-dip galvanised, DIN EN IS..
RGBEV 830 FT
7076304
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann RGBEV 830 FT articulated bend element vertical makes it possible to configure smooth elevation changes in complex industrial cable tray networks. These connectors ensure continuous physical support across multi-tier layouts.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): Adjustable
- Change of direction: Vertical, rising/falling
- CO2 Footprint (GWP) Cradle-to-Gate: 3,7573 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 85x300
- Dimension B: 300 mm
- Height: 3 in
- Height: 85 mm
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | Adjustable |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,7573 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 85x300 |
| Dimension B | 300 mm |
| Height | 3 in |
| Height | 85 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type | Adjustable bend element |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 300 mm |
| Width | 12 in |
