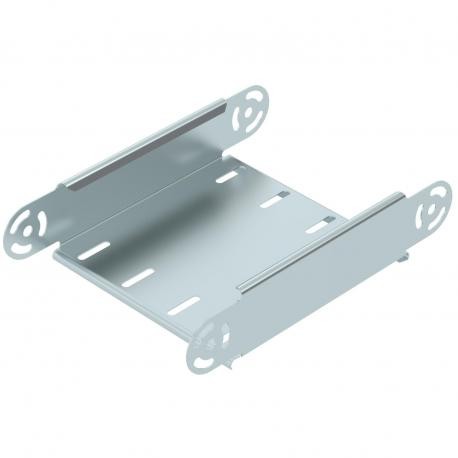

RGBEV 620 FS 7005342 OBO BETTERMANN Articulated bend element vertical, 60x200, Strip-galvanised, DIN EN 1014..
RGBEV 620 FS
7005342
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Obo Bettermann articulated bend element vertical (RGBEV 620 FS) offers adjustable angle configuration for vertical cable routing, giving installers flexibility when navigating obstacles. This part ensures continuous support across changing elevations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): Adjustable
- Change of direction: Vertical, rising/falling
- CO2 Footprint (GWP) Cradle-to-Gate: 2,5584 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 60x200
- Dimension B: 200 mm
- Height: 60 mm
- Height: 2 in
- Maintain electrical functions: yes
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | Adjustable |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 2,5584 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x200 |
| Dimension B | 200 mm |
| Height | 60 mm |
| Height | 2 in |
| Maintain electrical functions | yes |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type | Adjustable bend element |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 8 in |
| Width | 200 mm |
