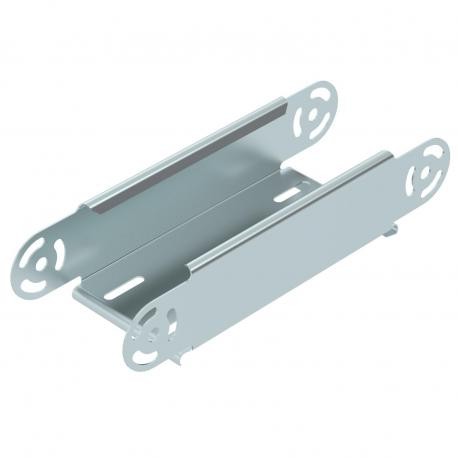

RGBEV 610 FS 7005326 OBO BETTERMANN Articulated bend element vertical, 60x100, Strip-galvanised, DIN EN 1014..
RGBEV 610 FS
7005326
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann RGBEV 610 FS articulated bend element vertical offers flexible angle adaptation for cable management pathways requiring vertical trajectory changes. Articulated components allow installers to configure custom routing angles seamlessly without needing custom-fabricated fittings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): Adjustable
- Change of direction: Vertical, rising/falling
- CO2 Footprint (GWP) Cradle-to-Gate: 1,8747 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 60x100
- Dimension B: 100 mm
- Height: 60 mm
- Height: 2 in
- Maintain electrical functions: yes
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | Adjustable |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,8747 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 60x100 |
| Dimension B | 100 mm |
| Height | 60 mm |
| Height | 2 in |
| Maintain electrical functions | yes |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type | Adjustable bend element |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 4 in |
| Width | 100 mm |
