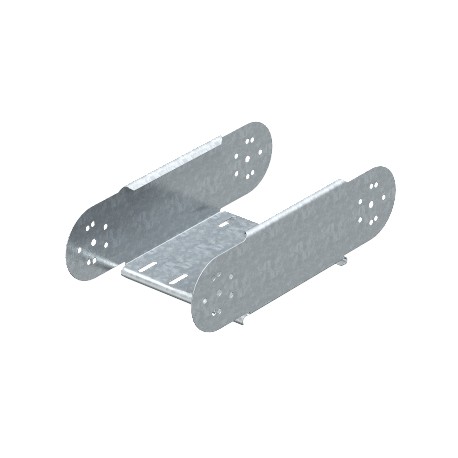

RGBEV 130 FT 7077300 OBO BETTERMANN Articulated bend element vertical, 110x300, Hot-dip galvanised, DIN EN I..
RGBEV 130 FT
7077300
OBO BETTERMANN
1 Pcs.
Articulated bend element vertical, 110x300, Hot-dip galvanised, DIN EN ISO 1461, Steel, St
Adjustable bend element, vertical 110 FT. Adjustable bend element, vertical, for all cable tray types with a side height of 110 mm.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | Adjustable |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,7111 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x300 |
| Dimension B | 300 mm |
| Height | 4 in |
| Height | 110 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type | Adjustable bend element |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 12 in |
| Width | 300 mm |
