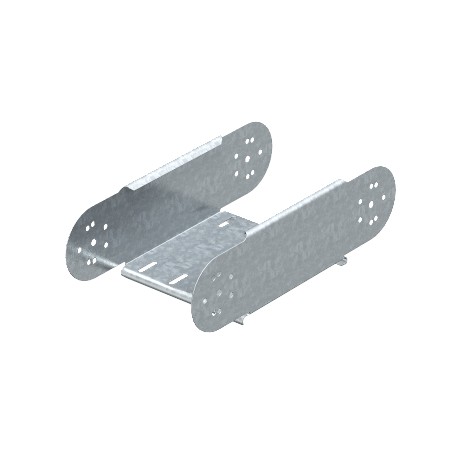

RGBEV 120 FS 7005644 OBO BETTERMANN Articulated bend element vertical, 110x200, Strip-galvanised, DIN EN 101..
RGBEV 120 FS
7005644
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Obo Bettermann RGBEV 120 FS articulated bend element vertical delivers flexible vertical transition capabilities for standard wire support runs. This piece is commonly integrated into plant automation setups to manage cable trajectory changes.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): Adjustable
- Change of direction: Vertical, rising/falling
- CO2 Footprint (GWP) Cradle-to-Gate: 4,8267 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 110x200
- Dimension B: 200 mm
- Height: 4 in
- Height: 110 mm
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | Adjustable |
|---|---|
| Change of direction | Vertical, rising/falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 4,8267 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 110x200 |
| Dimension B | 200 mm |
| Height | 4 in |
| Height | 110 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type | Adjustable bend element |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 8 in |
| Width | 200 mm |
