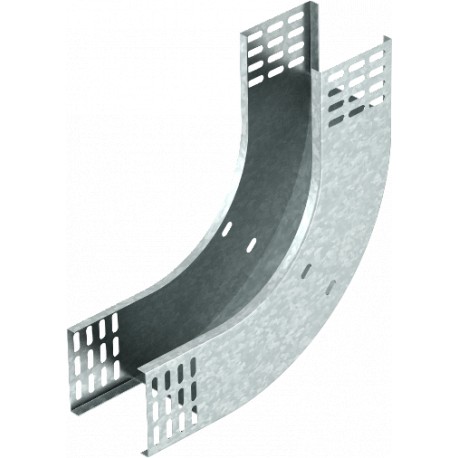

RBV 860 S FS 7007250 OBO BETTERMANN 90° vertical bend rising, 85x600, Strip-galvanised, DIN EN 10147, Steel,..
RBV 860 S FS
7007250
OBO BETTERMANN
1 Pcs.
90° vertical bend rising, 85x600, Strip-galvanised, DIN EN 10147, Steel, St
90° vertical bend, rising, 85 FS. 90° rising vertical bend, for all cable tray types of 85 mm side height.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
This Obo Bettermann RBV 860 S FS is a 90° vertical bend rising configured to guide cable routing systems upward across walls and pillars. Prefabricated bends ensure reliable installation geometries for industrial electrical networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical rising
- CO2 Footprint (GWP) Cradle-to-Gate: 8,7428 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 85x600
- Dimension B: 600 mm
- Height: 85 mm
- Height: 3 in
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 8,7428 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 85x600 |
| Dimension B | 600 mm |
| Height | 85 mm |
| Height | 3 in |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 600 mm |
| Width | 24 in |
