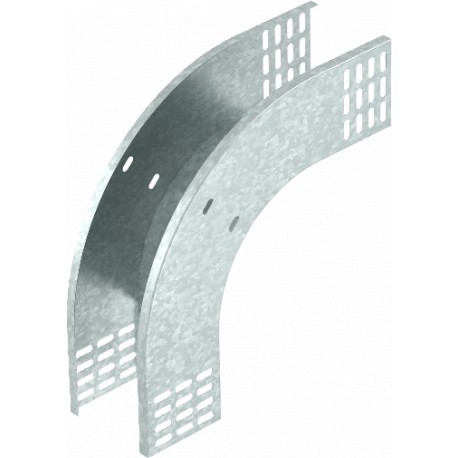

RBV 850 F FT 7007287 OBO BETTERMANN 90° vertical bend falling, 85x500, Hot-dip galvanised, DIN EN ISO 1461, ..
RBV 850 F FT
7007287
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Obo Bettermann RBV 850 F FT 90° vertical bend falling guides cable routing systems downward along vertical building infrastructure or industrial frameworks. These fittings maintain proper bend radii to protect sensitive wiring during directional shifts. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical, falling
- CO2 Footprint (GWP) Cradle-to-Gate: 5,2082 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 85x500
- Dimension B: 500 mm
- Height: 3 in
- Height: 85 mm
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,2082 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 85x500 |
| Dimension B | 500 mm |
| Height | 3 in |
| Height | 85 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Hot-dip galvanised |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 20 in |
| Width | 500 mm |
