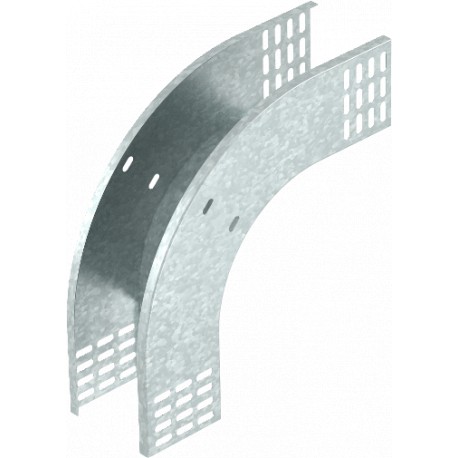

RBV 850 F FS 7007286 OBO BETTERMANN 90° vertical bend falling, 85x500, Strip-galvanised, DIN EN 10147, Steel..
RBV 850 F FS
7007286
OBO BETTERMANN
1 Pcs.
90° vertical bend falling, 85x500, Strip-galvanised, DIN EN 10147, Steel, St
90° vertical bend, falling 85 FS. 90° vertical bend, falling, for all cable tray types of 85 mm side height.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 5,7468 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 85x500 |
| Dimension B | 500 mm |
| Height | 3 in |
| Height | 85 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 20 in |
| Width | 500 mm |
