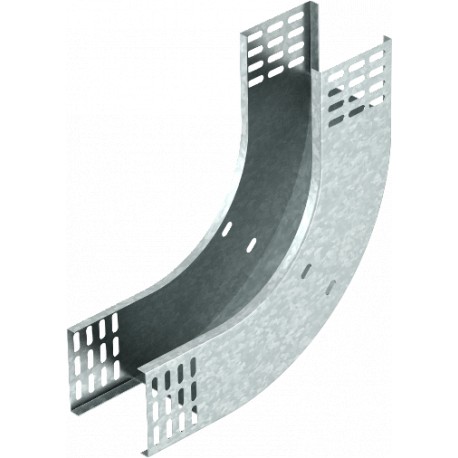

RBV 840 S FS 7007242 OBO BETTERMANN 90° vertical bend rising, 85x400, Strip-galvanised, DIN EN 10147, Steel,..
RBV 840 S FS
7007242
OBO BETTERMANN
1 Pcs.
90° vertical bend rising, 85x400, Strip-galvanised, DIN EN 10147, Steel, St
Vertical bend 90° RBV 840 S FS upward 85x400 zinc Steel, St strip galvanized, DIN EN 10346
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
90° rising vertical bend, for all cable tray types of 85 mm side height.
| Feature Name | Feature Value |
|---|---|
| Change of direction (EF005210) | Rising vertically |
| Angle (EF001218) | 90° |
| Suitable for cable tray height (EF004822) | 85 mm |
| Suitable for cable tray width (EF004820) | 400 mm |
| Material thickness (EF000386) | 1 mm |
| Side perforation (EF001122) | No |
| Bottom perforation (EF004545) | No |
| NATO-mounting holes (EF006059) | No |
| Model (EF000010) | Coupler not included |
| Suitable for circuit integrity (EF007806) | No |
| Material (EF002169) | Steel |
| Stainless steel, pickled (EF006388) | No |
| Surface protection (EF000139) | Pre-galvanised |
