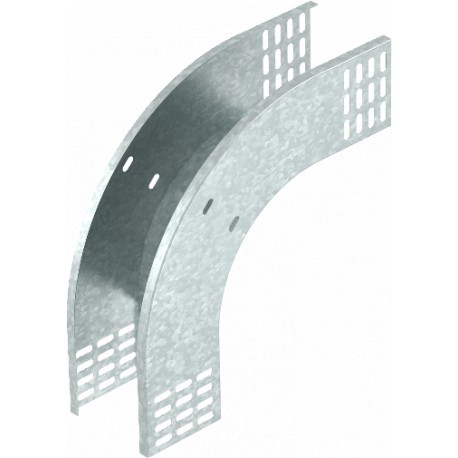

RBV 810 F FS 7007270 OBO BETTERMANN 90° vertical bend falling, 85x100, Strip-galvanised, DIN EN 10147, Steel..
RBV 810 F FS
7007270
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
A 90° vertical bend falling fitting allows cable trays to transition downwards around obstacles or through floors. Manufactured by Obo Bettermann (RBV 810 F FS), it provides reliable directional control for industrial wiring networks.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical, falling
- CO2 Footprint (GWP) Cradle-to-Gate: 3,186 kg CO2e / 1 Piece
- Colour: zinc
- Connector version: Without connectors
- Dimension: 85x100
- Dimension B: 100 mm
- Height: 3 in
- Height: 85 mm
- Maintain electrical functions: no
- Material: Steel
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical, falling |
| CO2 Footprint (GWP) Cradle-to-Gate | 3,186 kg CO2e / 1 Piece |
| Colour | zinc |
| Connector version | Without connectors |
| Dimension | 85x100 |
| Dimension B | 100 mm |
| Height | 3 in |
| Height | 85 mm |
| Maintain electrical functions | no |
| Material | Steel |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Strip galvanized |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 4 in |
| Width | 100 mm |
