RBV 650 S VA4571 7006736 OBO BETTERMANN 90° vertical bend rising, 60x500, Stainless steel, grade 316 Ti, VA,..
RBV 650 S A4
7006736
OBO BETTERMANN
1 Pcs.
Cables > Bend for cable tray
Rest sheet tray
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

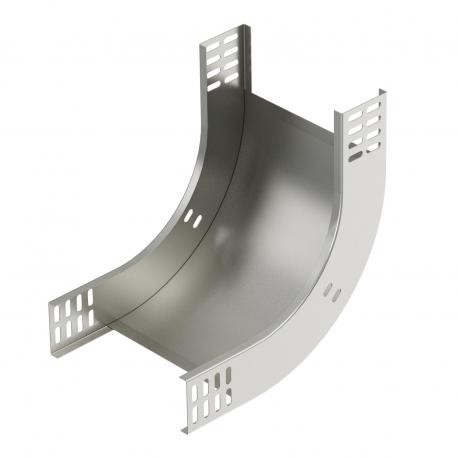

An Obo Bettermann 90° vertical bend rising (RBV 650 S A4) is manufactured from high-grade stainless steel to deliver corrosion-resistant upward directional changes in demanding cable routing environments. It is well-suited for harsh industrial settings. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Bend (angle): 90°
- Change of direction: Vertical rising
- CO2 Footprint (GWP) Cradle-to-Gate: 12,219 kg CO2e / 1 Piece
- Colour: stainless steel
- Connector version: Without connectors
- Dimension: 60x500
- Dimension B: 500 mm
- Height: 2 in
- Height: 60 mm
- Maintain electrical functions: no
- Material: Stainless steel 1.4571
- Mounting perforation in base: no
- NATO hole pattern: no
- Plate thickness: 1 mm
- Rustproof steel, pickled: no
- Side perforation: no
More info
▲| Bend (angle) | 90° |
|---|---|
| Change of direction | Vertical rising |
| CO2 Footprint (GWP) Cradle-to-Gate | 12,219 kg CO2e / 1 Piece |
| Colour | stainless steel |
| Connector version | Without connectors |
| Dimension | 60x500 |
| Dimension B | 500 mm |
| Height | 2 in |
| Height | 60 mm |
| Maintain electrical functions | no |
| Material | Stainless steel 1.4571 |
| Mounting perforation in base | no |
|---|---|
| NATO hole pattern | no |
| Plate thickness | 1 mm |
| Rustproof steel, pickled | no |
| Side perforation | no |
| Surface | Bright, treated |
| Type of connector, cable support system | Screwed |
| Wide-span version | no |
| Width | 500 mm |
| Width | 20 in |
